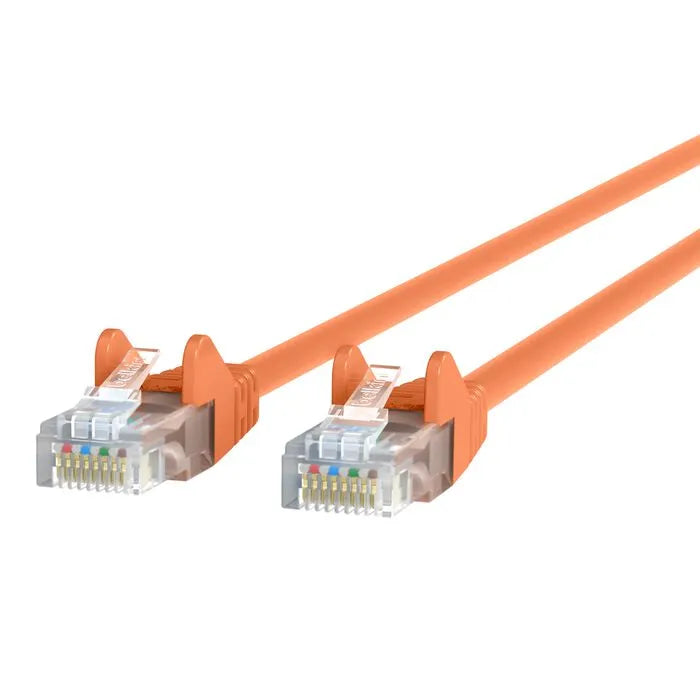

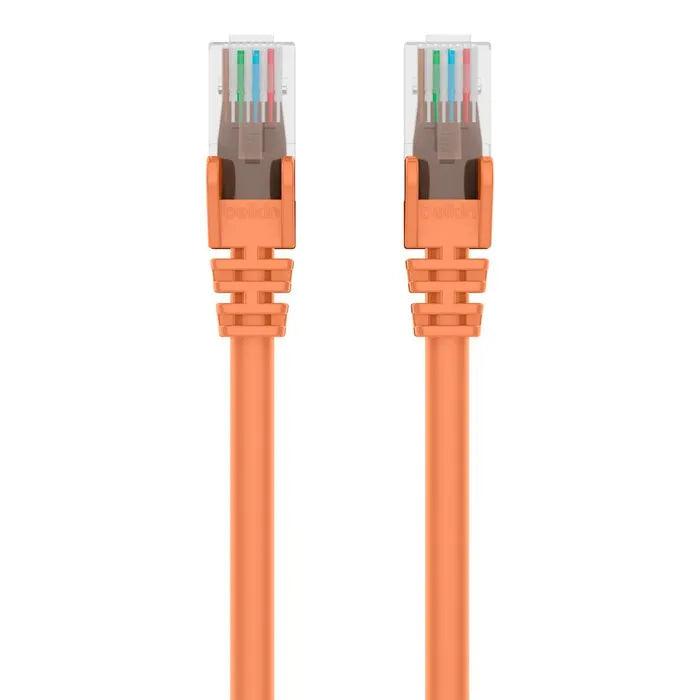

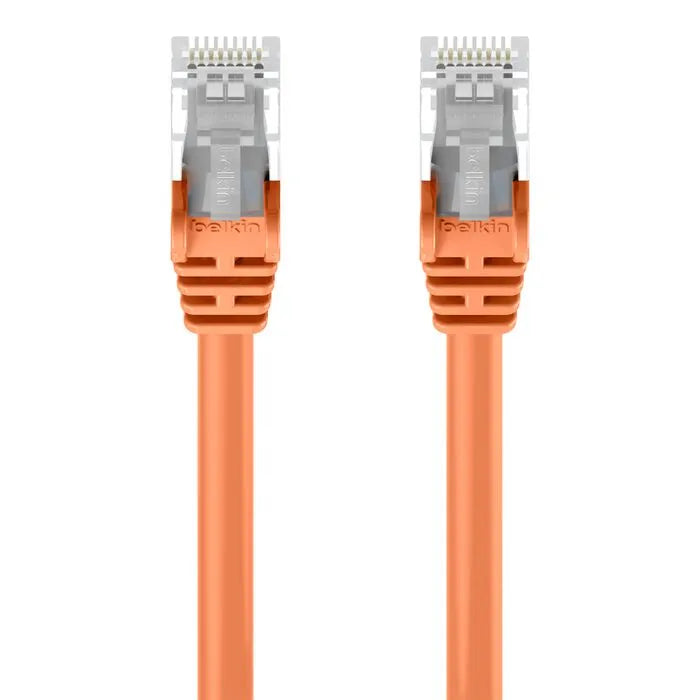

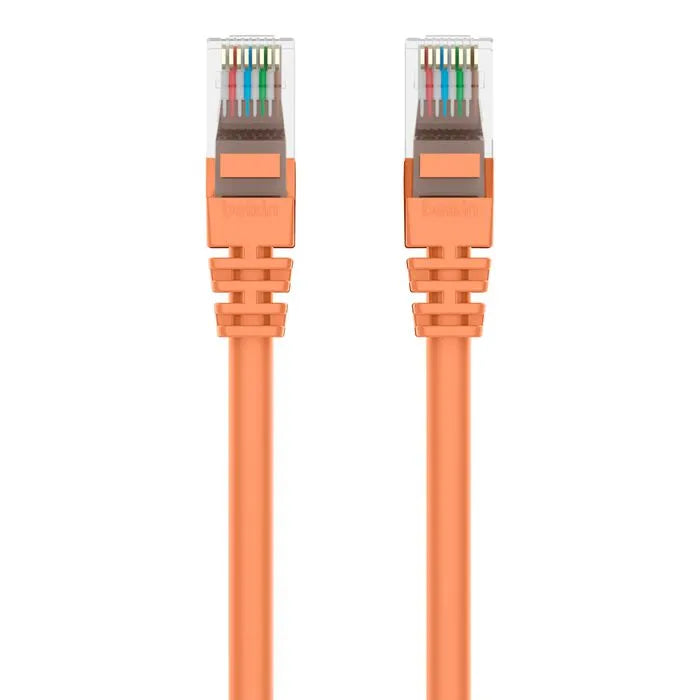

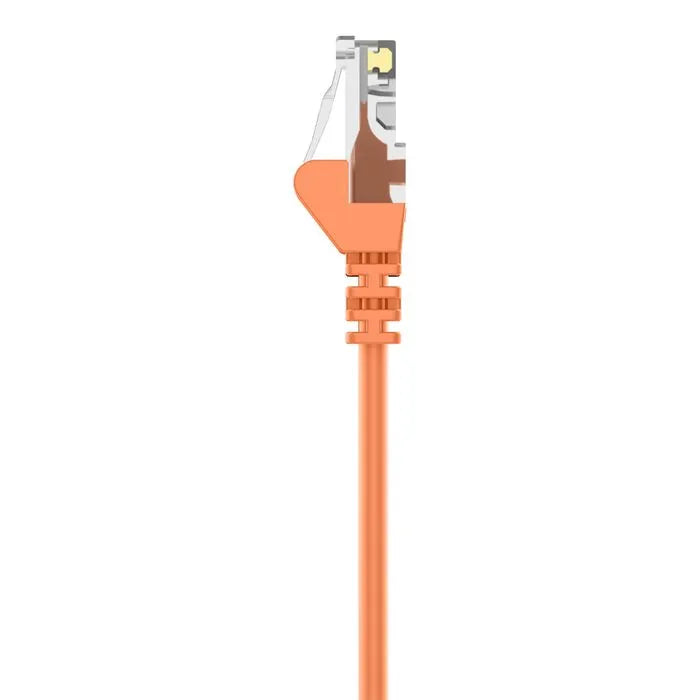

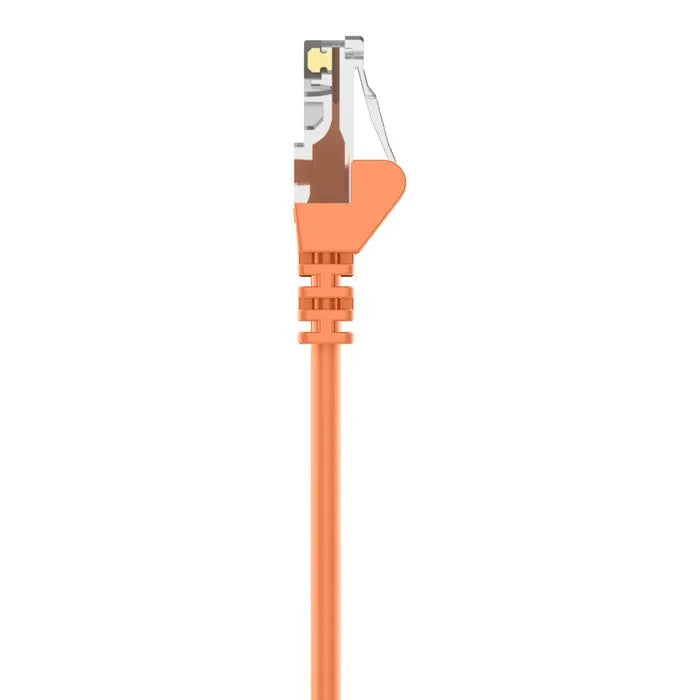

CAT6 Ethernet Patch Cable Snagless, RJ45, M/M, Orange

$4.58 $1.37
Cable Length

Free Shipping

Free Returns


Cable Characteristic



  • Unshielded twisted pair (UTP)





Cable Type



  • Cat 6





Characteristic Impedence



  • 100±15Ω @ 1 ~ 550MHz




  • 100±15Ω @ 1 ~ 550MHz





Conductor Construction



  • Bare Stranded Copper





Conductor Resistance



  • 93.8Ω/km/20°C max





Conductor Size



  • 24AWG x 4pairs





Connector on First End



  • 1 x RJ-45 - male





Connector on Second End



  • 1 x RJ-45 - male





Connectors



  • RJ45





Dielectric Strength



  • AC 1.5kV





Flame Retardant Test



  • CM





Insulation Material



  • HDPE





Jacket Diameter



  • 5.9±0.15mm





Jacket Material



  • PVC





Mutual Capacitance



  • 56pF/m max





Propagation Delay



  • 536nS/100m max @ 550MHz





Spark Test



  • 2.5kV





Standards Compliance



  • ISO/IEC 11801; TIA/EIA-568-B.2-1





Structural Return Loss



  • 8.6dB min at 550MHz





Limited Warranty



  • ;



Compatible with Ethernet enable devices.

Maximize your network speed with a 7-foot high-bandwidth CAT6 cable. Learn More



  • Ideal for VoIP, video, and file transfers

  • Exceeds 500MHz in performance tests

  • Belkin Lifetime Warranty*
