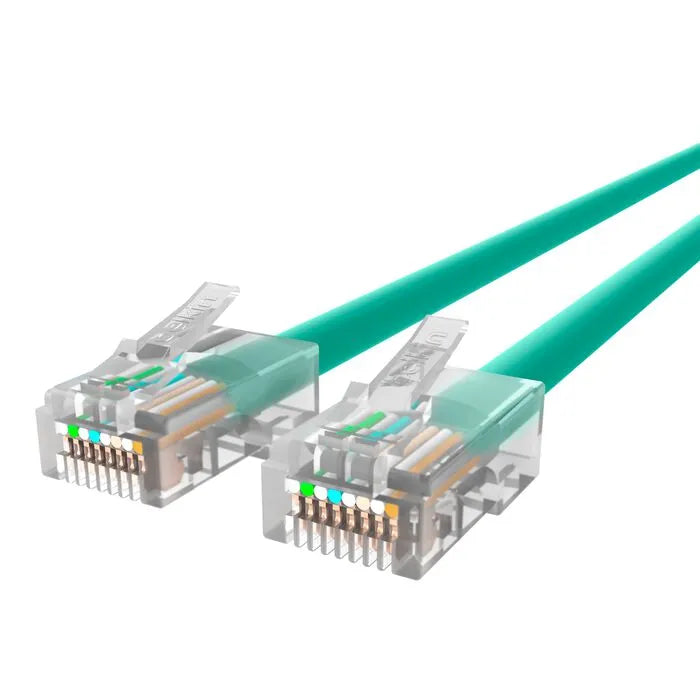

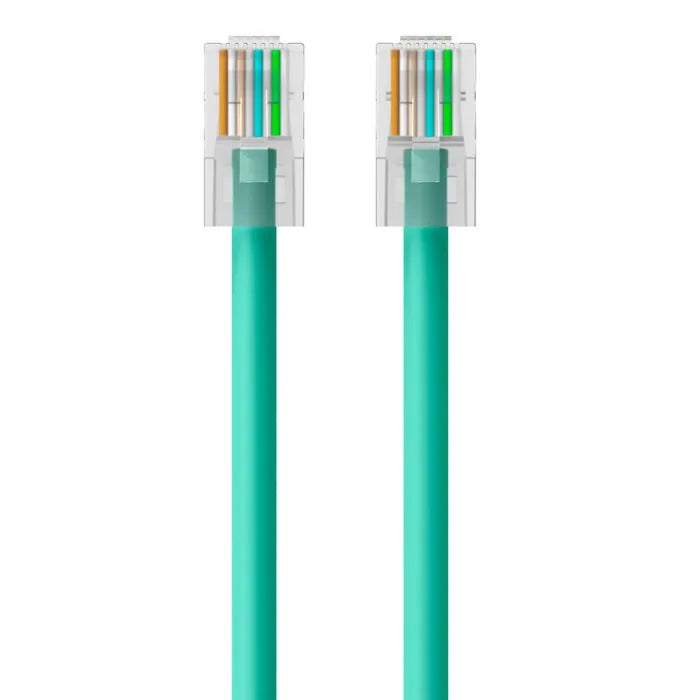

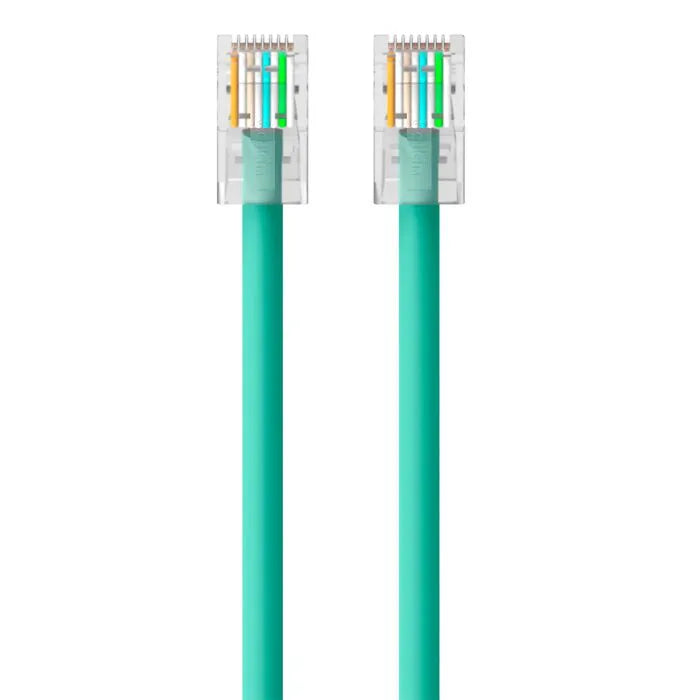

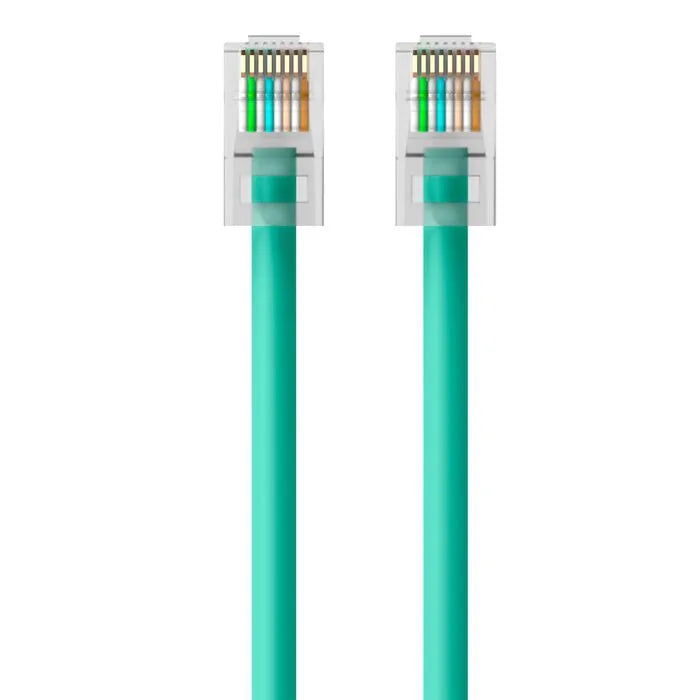

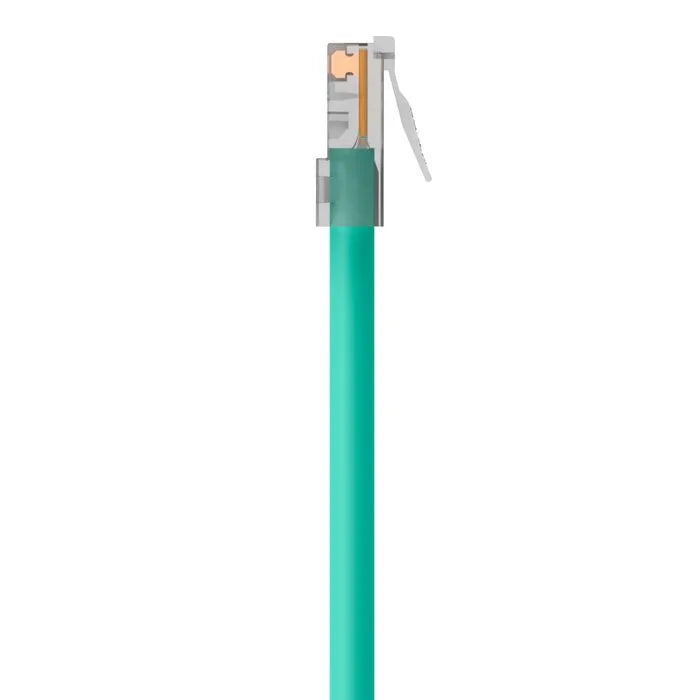

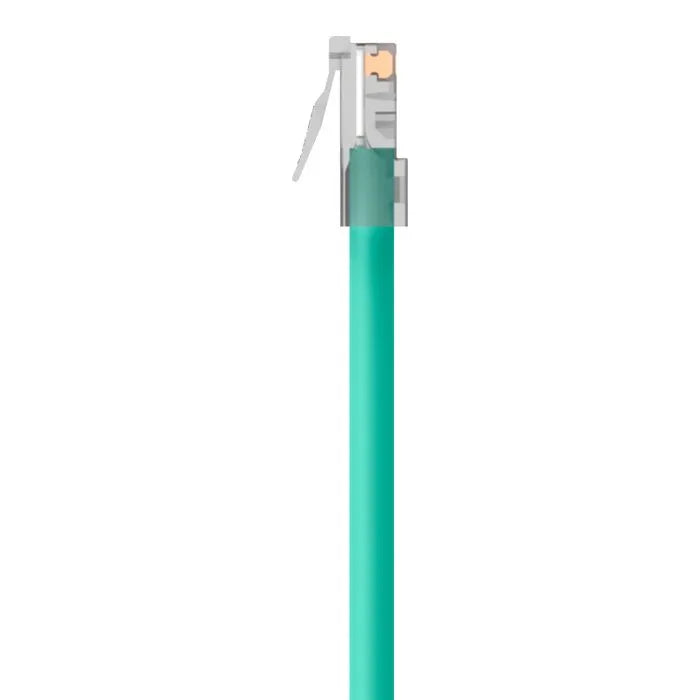

RJ45 CAT-5e Patch Cable, Green

$2.99 $0.90
Cable Length

Free Shipping

Free Returns


Cable Characteristic



  • Unshielded twisted pair (UTP)





Cable Type



  • Patch cable - CAT 5e





Characteristic Impedence



  • 100±15Ω @ 1 ~ 350MHz





Conductor Construction



  • Bare Stranded Copper





Conductor Resistance



  • 89.2Ω/km/20°C max





Conductor Size



  • 24AWG x 4pairs





Connectors



  • 1 x RJ-45 - male





Dielectric Strength



  • AC 1.75kV/0.15sec





Flame Retardant Test



  • CM





Insulation Material



  • HDPE





Jacket Diameter



  • 5.5±0.15mm





Jacket Material



  • PVC





Mutual Capacitance



  • 56pF/m max





Propagation Delay



  • 538nS/100m max @ 350MHz





Spark Test



  • 2.5kV





Standards Compliance



  • ISO/IEC 11801; TIA/EIA-568-B.2





Structural Return Loss



  • 19.0dB min at 350MHz
